125t 2500mm Hydraulic Bender Machine/4 Axis Cnc Press Brake

Quick Description

• Slider Stroke (mm): 120 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 320 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 2500
• Width of Working Table (mm): 1850 mm
• Dimension: 2600X1850X2450 mm
• Condition: New
• Place of Origin: Anhui, China
• Material / Metal Processed: Brass / Copper, Stainless steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: End Forming
• Year: 2021
• Weight (KG): 7000
• Motor Power (kw): 7.5 kw
• Key Selling Points: Automatic
• Warranty: 3 years
• Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
• Showroom Location: Egypt, Canada, United Kingdom, Viet Nam, Indonesia, Thailand, Morocco, Chile, Sri Lanka, Ukraine, Uzbekistan, Australia
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 2 years
• Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox
• After-sales Service Provided: Engineers available to service machinery overseas
• Max opening height: 380mm
• Driving speed: 80 mm/s
• Working speed: 8 mm/s
• Return rate: 75 mm/s
• Oil pump: 16 ml/r
• Distance between columns: 2000mm
• CNC controller: Cybtouch 12
• Keyword: press brake /bending machine /folding machine
• Nominal Pressure (kN): 1250

More Details

CybTouch 12 PS introduction

Easy Operating

* Fully Touch Screen, large and high-contrast interface.
* Hand drawing profile function.
* Simple pages, clear display, large keys.
* Intuitive user-friendly interface.
* Complete programming for efficient mass-production with multiple bends.
* Easy single bends thanks to the EasyBend page.
* Online help and interactive warning pop-up.
* Comfortable wireless software updating and data back up using PC or Notebook.
* USB port for memory sticks.
* Large variety of languages available.

Better Bending

* Various automatic calculations of bend functions.
* Bending sequences and programs can be memorized.
* Angle, pressure and crowning management.
* Easy manual movement.
* Easy Bend page provides immediate easy use of the machine: a second operator can briefly interrupt production without changing the program when an urgent bend is required.

Powerful

* 4 axes control (Y1-Y2-X-R).
* 2D graphic part creation with manual sequencing.
* Automatic bend order calculation (option).
* Bend allowance calculation.
* Pressure – crowning calculation.
* Modulable tools for each part or bend.
* Punch depth calculation.
* Angle and back gauge correction.

Product advantages and after sales service：

1. The difference in configuration has been shown in the quotation sheet,we use a lot of big international brands
2. our factory do press brake and shearing more than 25 years,Our machine quality is first class and our engineers are very experienced.
3. We process for the whole machine,our racks are all heat treated,so the machine is not easily deformed machine
4. Our molds are quenched and the material is 42CrMo,so quality is very good
5. We have a complete after-sales service system and will become your lifelong consultant. If you have any questions, please feel free to contact us. We can help you prepare all customs clearance information. When the machine is ready, our machines will be tested in the factory for 24 hours. Ensure the accuracy and straightness of the machine
6. We can promise you 2 years Warranty,excluding quick wear parts

Detailed Images

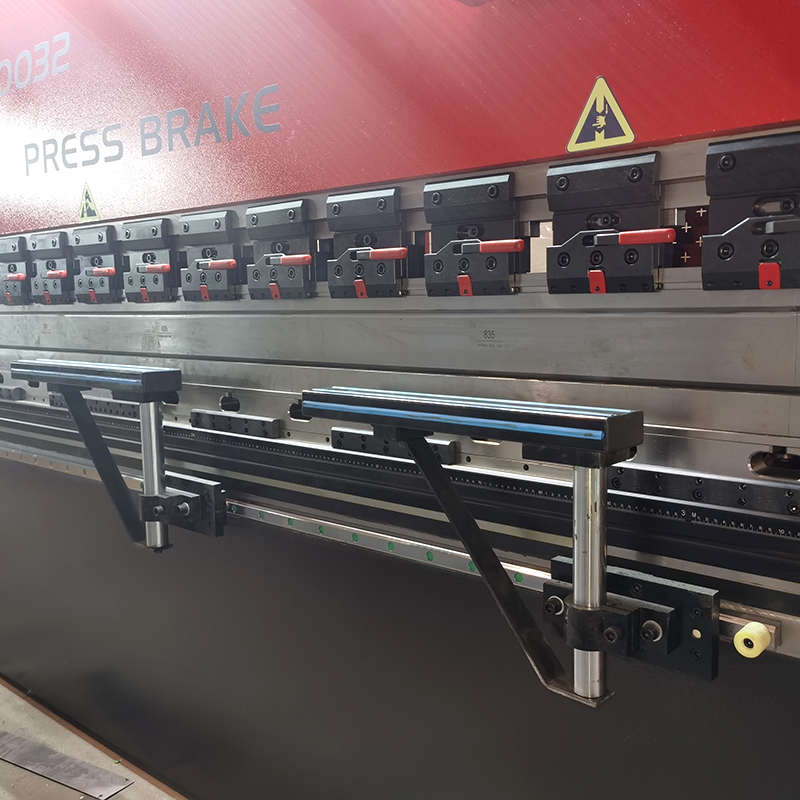

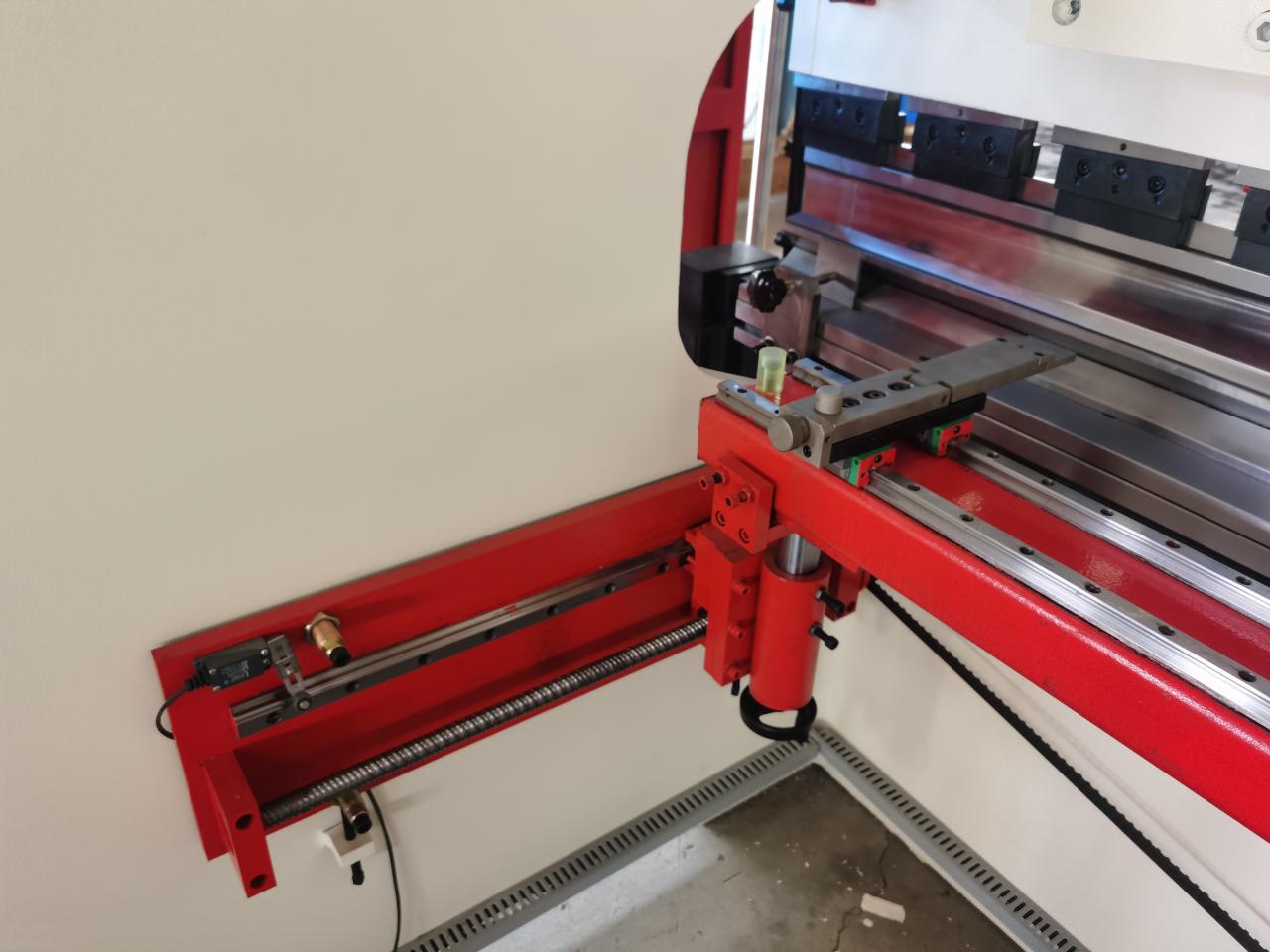

Quick mold clamping device ,cnc mold and front support with linear guide

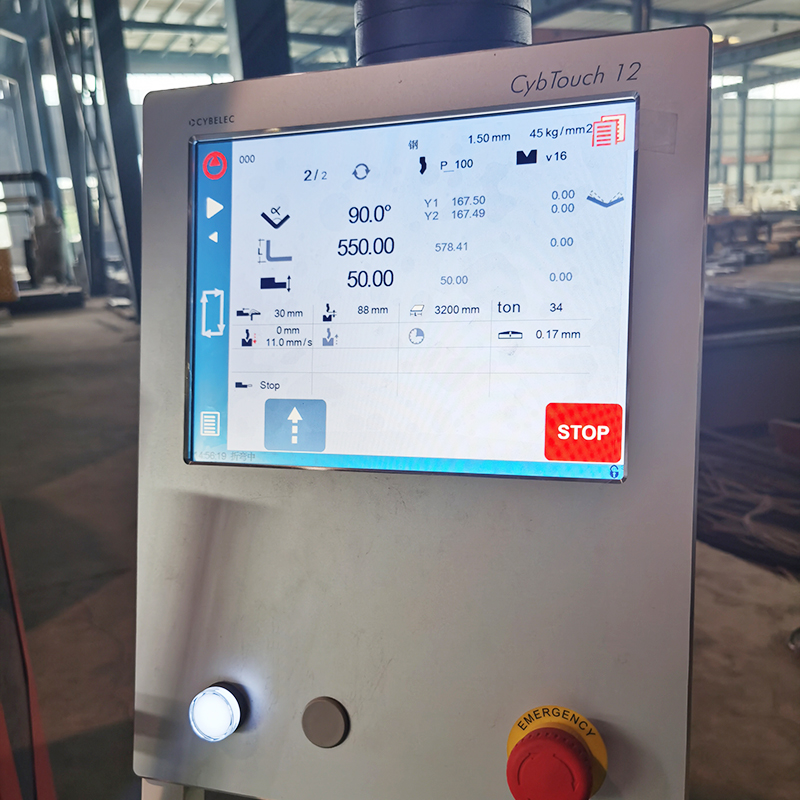

Cybtouch 12 CNC

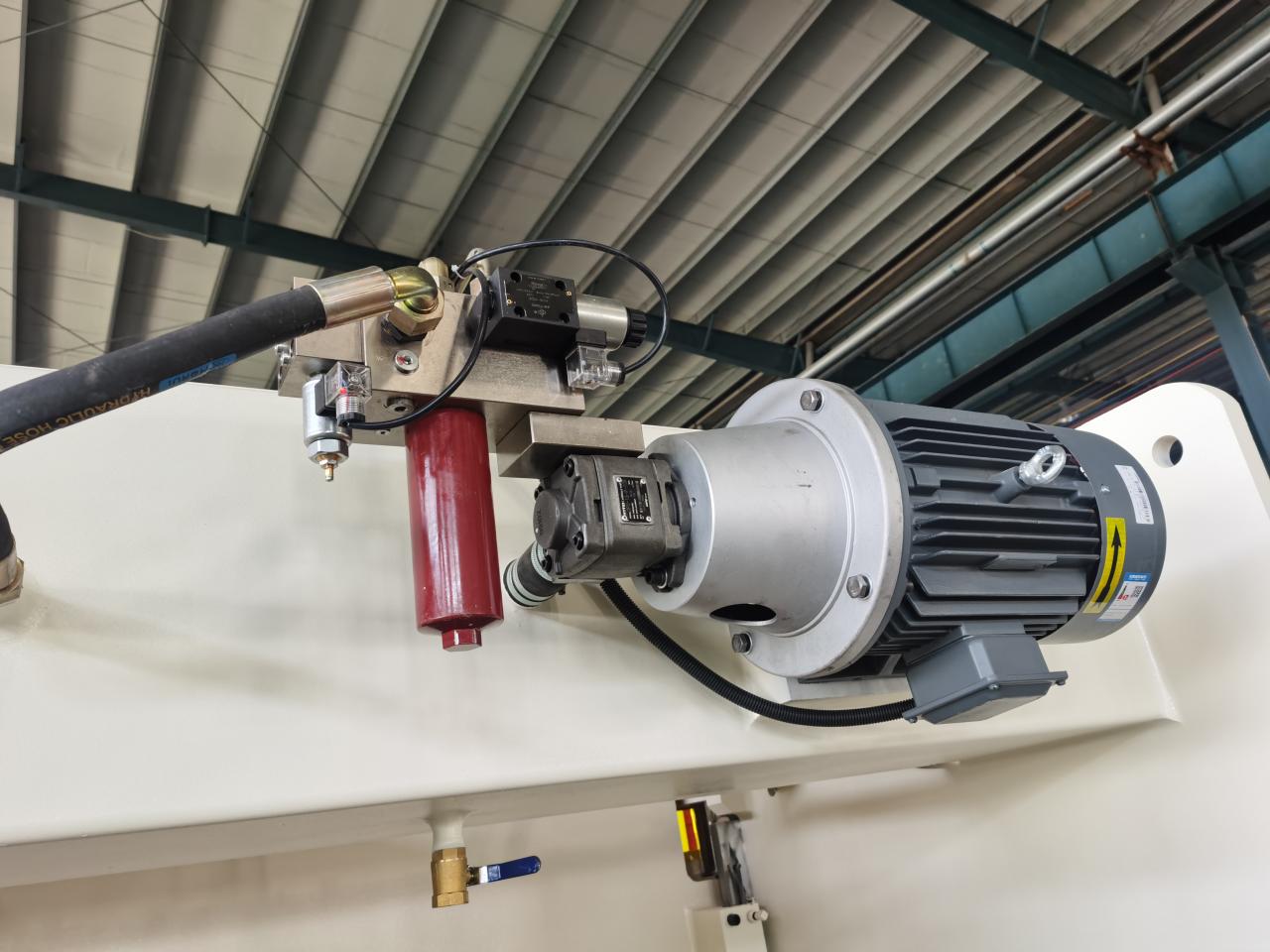

USA Sunny pump ,Germany Siemens motor, and Hydraulic Overload Protector

Germany Rexroth Hydraulic system

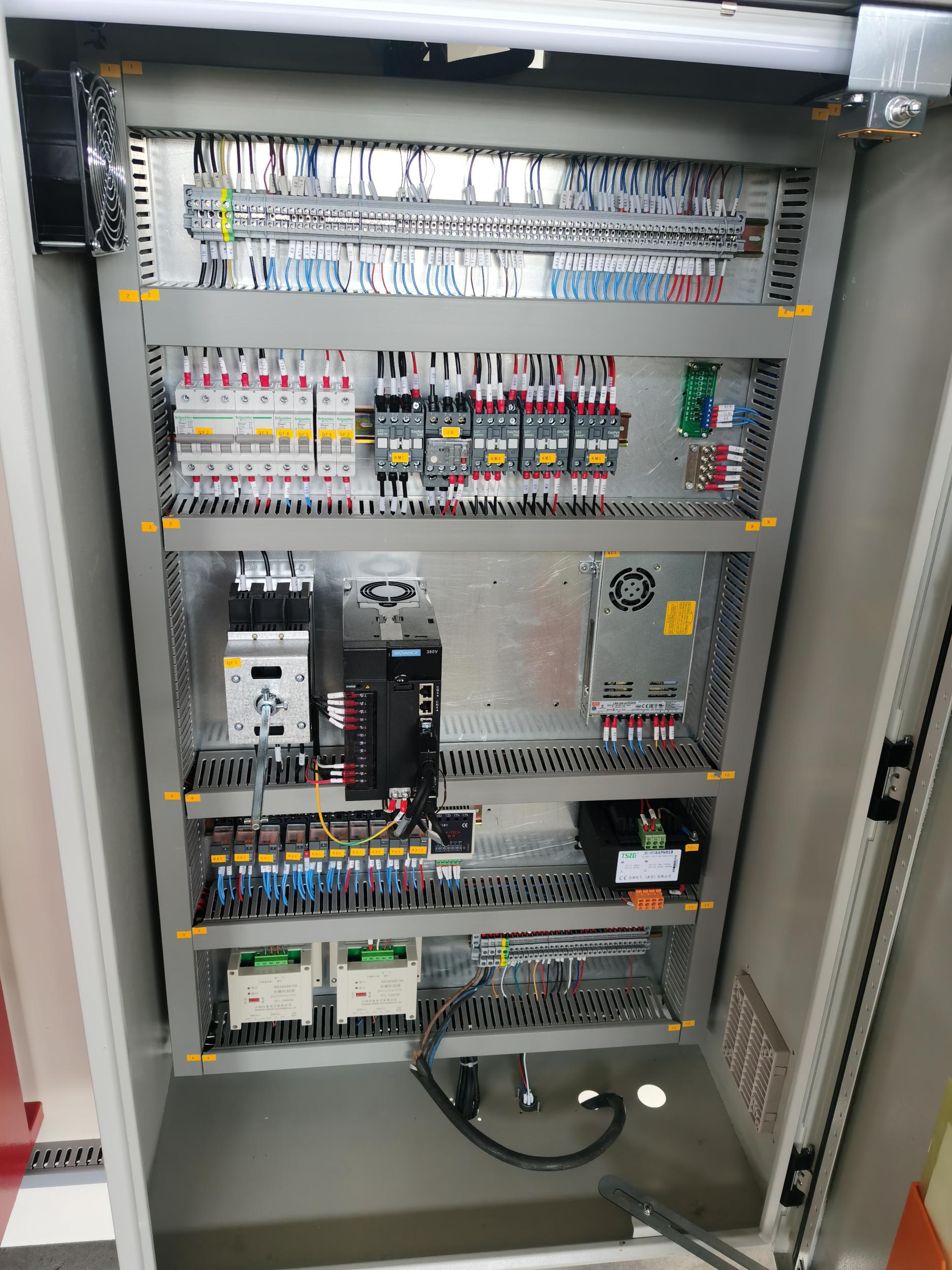

France Schneider Electrical component and Servo Motor

Taiwan HIWIN Ball Screw and Linear Guide

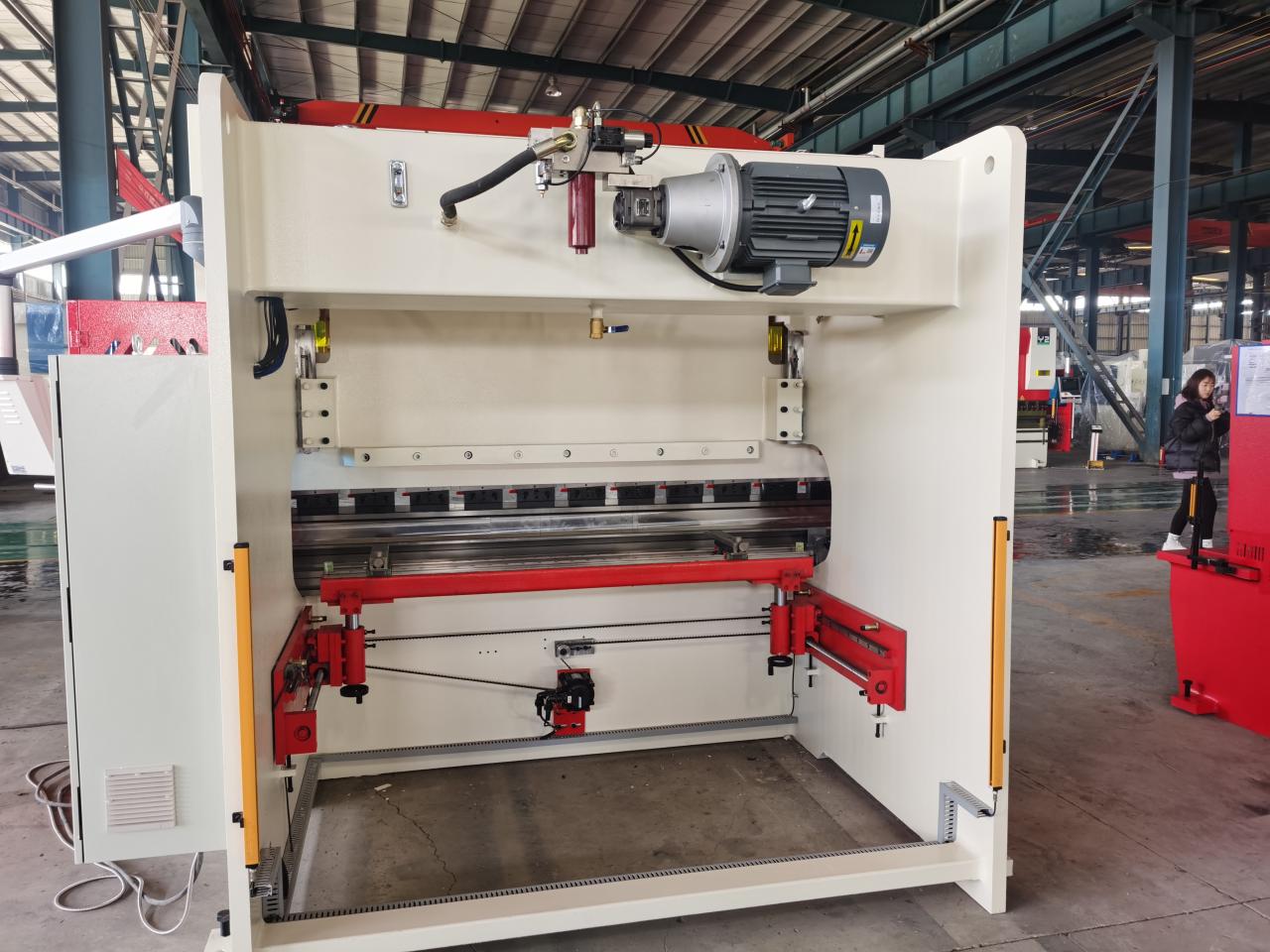

Machine back with light curtain protection

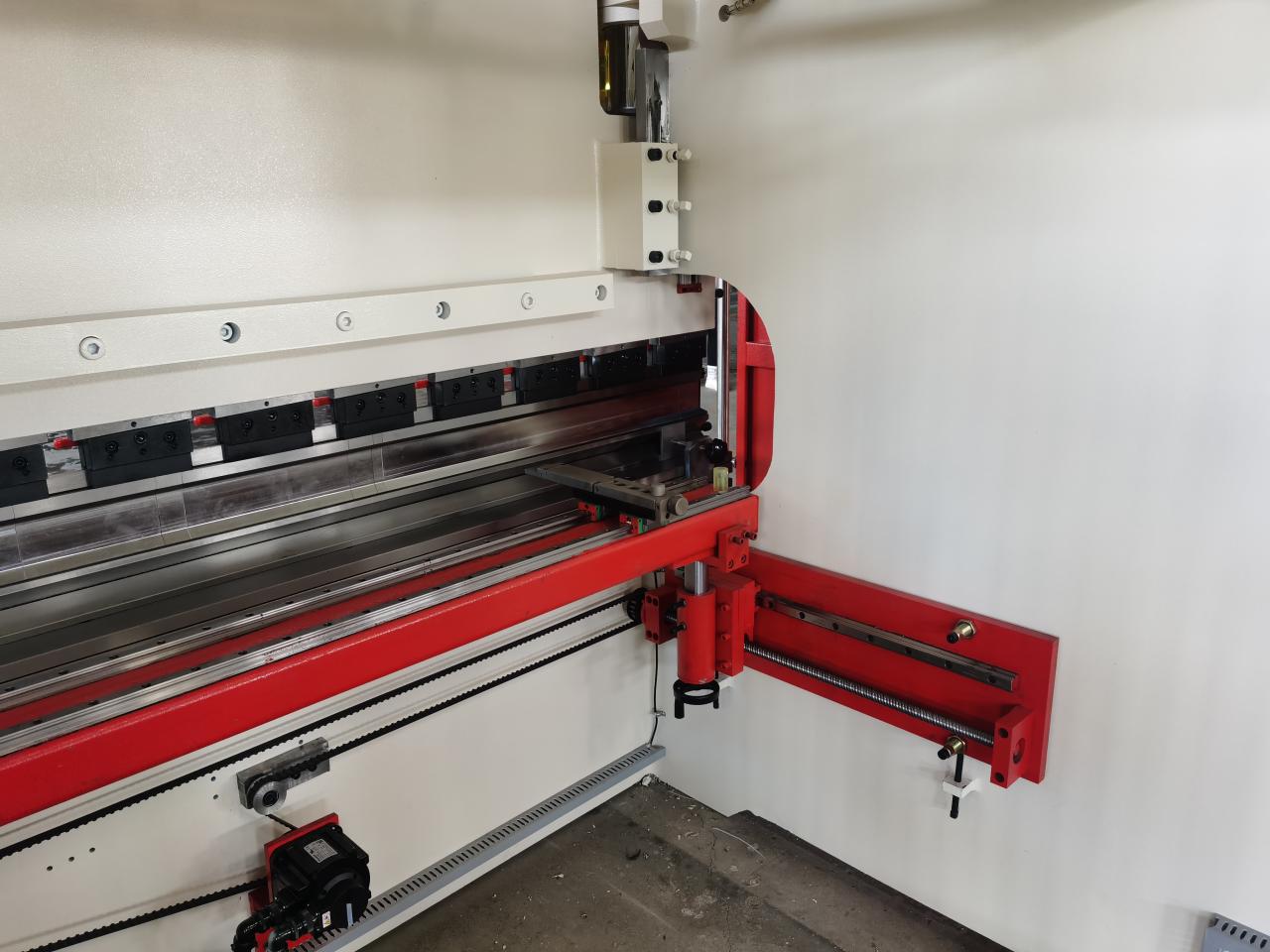

Backgauge

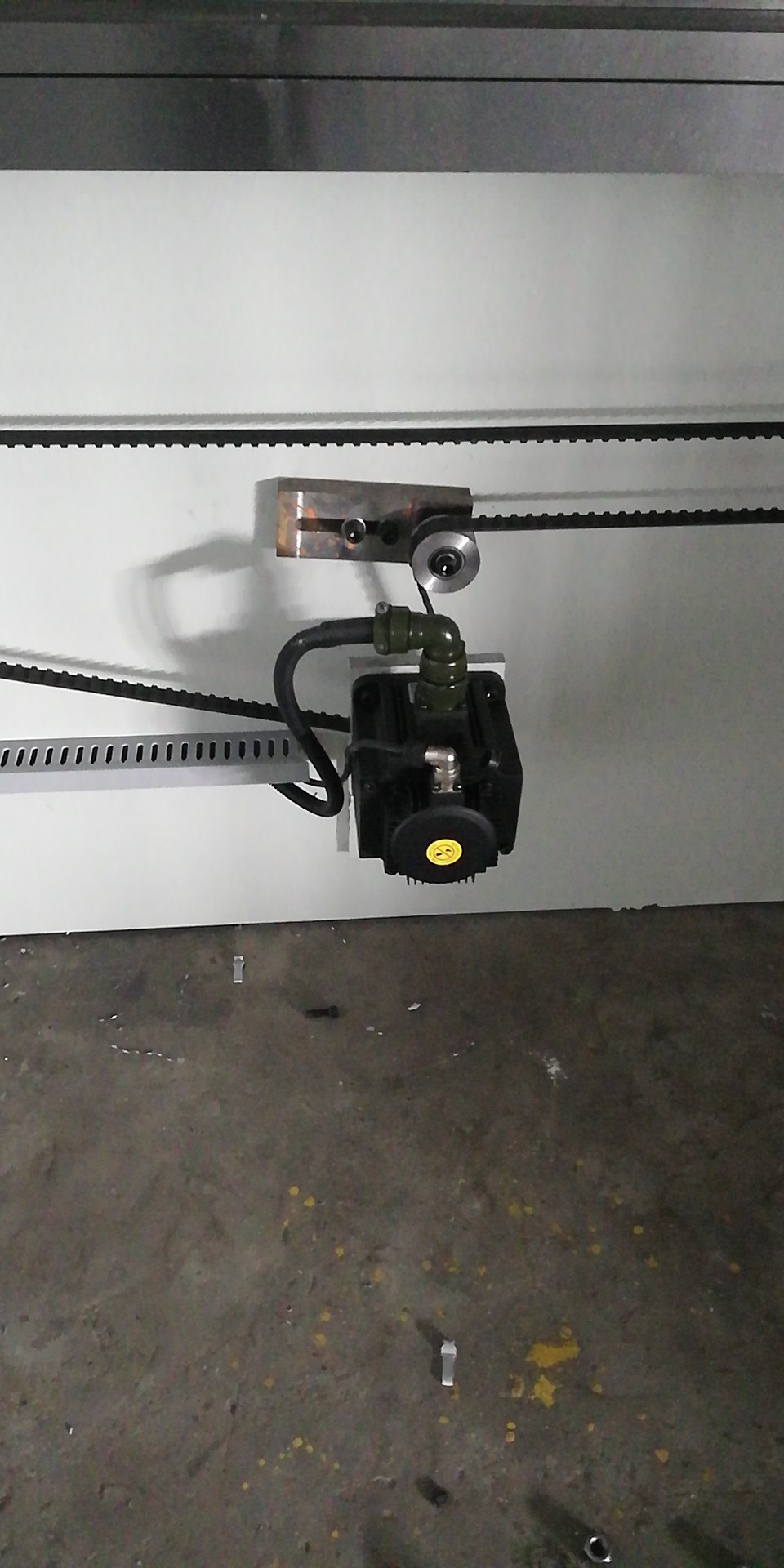

Eston Servo motor
