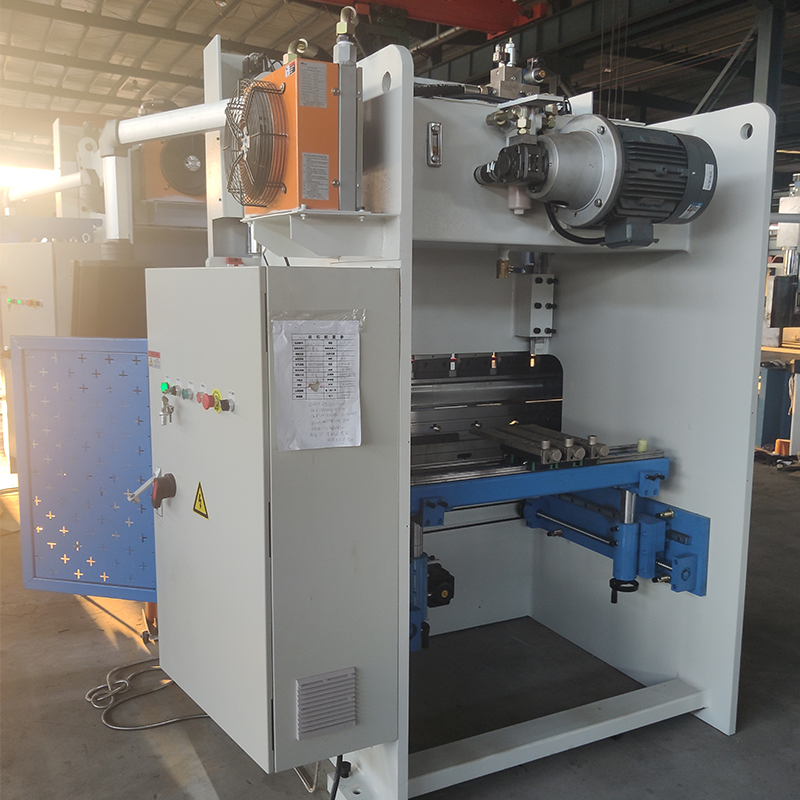

Ce Certificate Hydraulic Press Brake Mini Sheet Metal Bending Machine

Quick Description

• Slider Stroke (mm): 150 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 200 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 2060
• Width of Working Table (mm): 1510 mm
• Condition: New
• Place of Origin: Anhui, China
• Material / Metal Processed: Aluminum
• Automation: Automatic
• Weight (KG): 2400
• Motor Power (kw): 4 kw
• Key Selling Points: High-accuracy
• Warranty: 2 Years
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant
• Showroom Location: Egypt, United Kingdom, Viet Nam, India, Mexico, Thailand, Sri Lanka, Malaysia
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 24 months
• Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
• After-sales Service Provided: Engineers available to service machinery overseas
• Raw Material: Steel Bar/Carbon steel/Other
• Application: Construction Projects
• Voltage: 220V/230V/380V/400V
• Control axis: Y1,Y2 ,X, R
• Keyword: press brake machine
• Power: Electric -hydraulic
• Material: Stainess Steel
• Type: Hydraulic Bending Tools
• After Warranty Service: Video technical support

More Details

Product Description

Factory direct sell cnc automatic bending machine for steel with servo motor

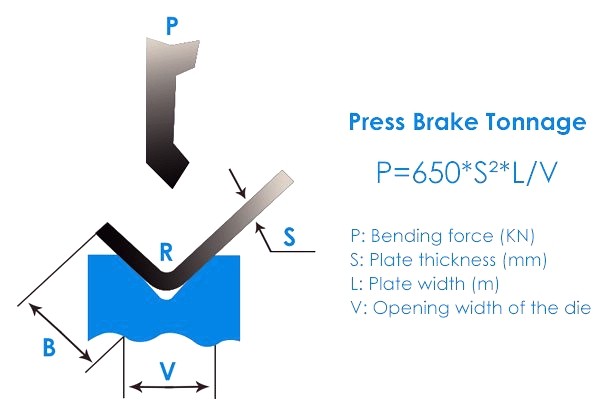

Basic parameters, such as the force or tonnage and the working length.Additional parameters include the stroke length, the distance between the frame uprights or side housings, back gauge distance, and work height.

Whole structure:

1. Machine body adopts intergrated welded structure.the main parts of the machine was analyzed by ANSYS finite element analysis software,which ensures the reliability of the machine and the precision of the entire machine;

2. The main oil cylinders fitted on both sides adopt closed loop control mode which is composed of Germany electro-hydraulic servo valve and imported grating ruler,breaking through the stroke control mode of traditional mechanical stop bending machines, ensuring the high precision of the glide position, the accurate and stable operation, the high precision of bending, and high precision of the repeated positioning of slider;

3. The functional components of the back gauge are all imported, ensuring the stopping precision.The machine also can adopt more functional multi-axis blocking according to the customers' requirements;

4. The hydraulic system adopts integrated control system imported from Germany, which decreases the installation of pipelines and ensures working stability of the machine too! and conciseness and beauty in appearance;

5. C-shaped plates are fitted on both sides of the machine body, and the high precision grating ruler is fitted on the C-shaped plate. Thus to avoid the influences on bending precision arising from distortion of machine body during bending process;

6. The lower workbench is fitted with hydraulic automatic deflection compen- sation mechanism, ensuring effective compensation without blind area and high precision of bending, so that long stability is guaranteed.

Details Images

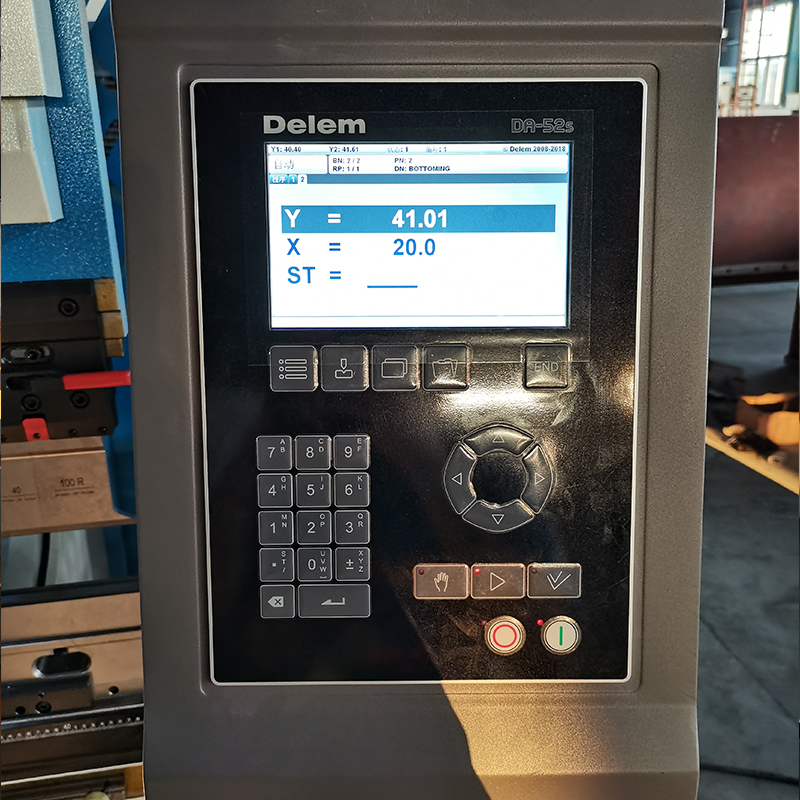

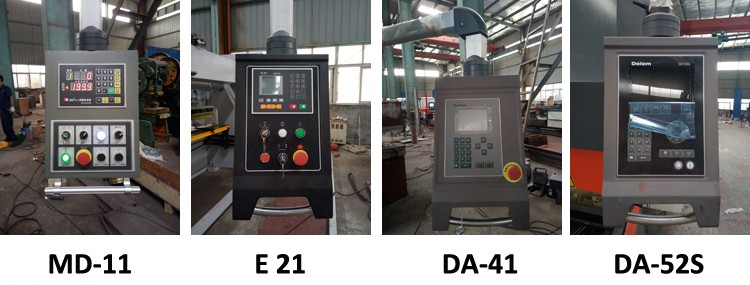

DA52S controller

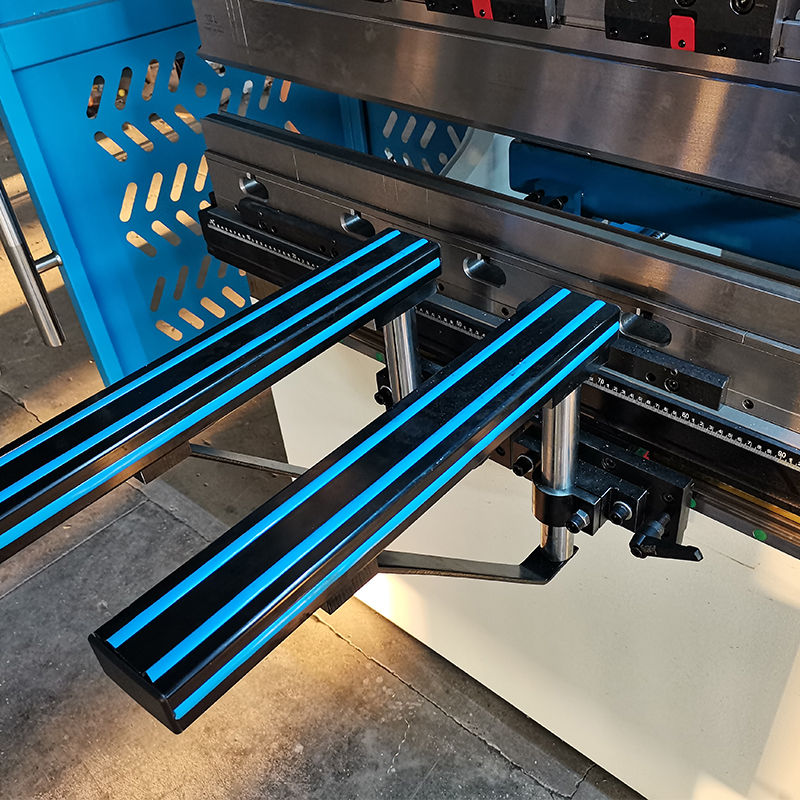

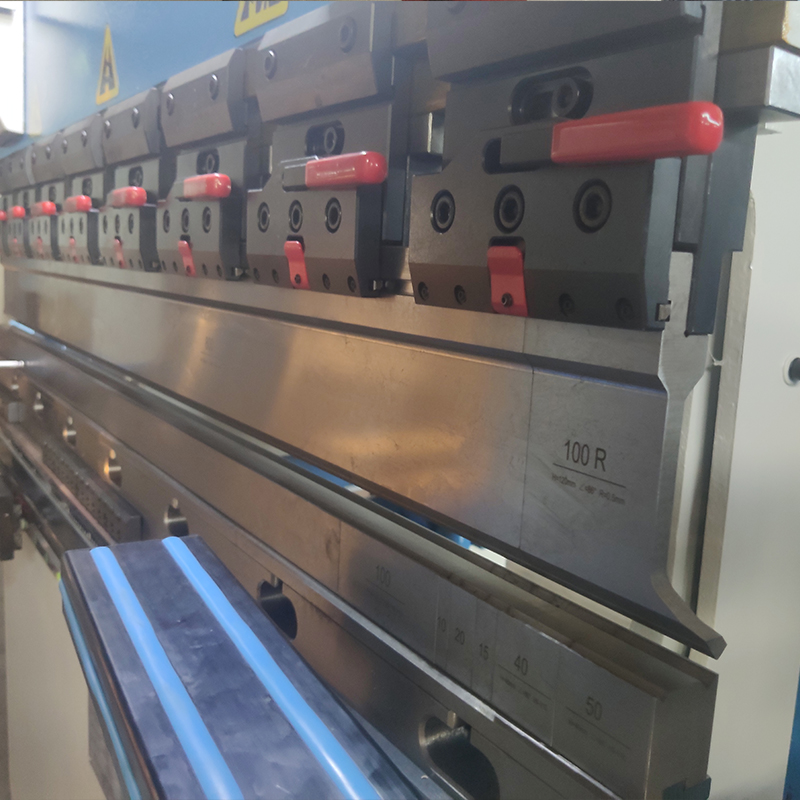

Quick clamps

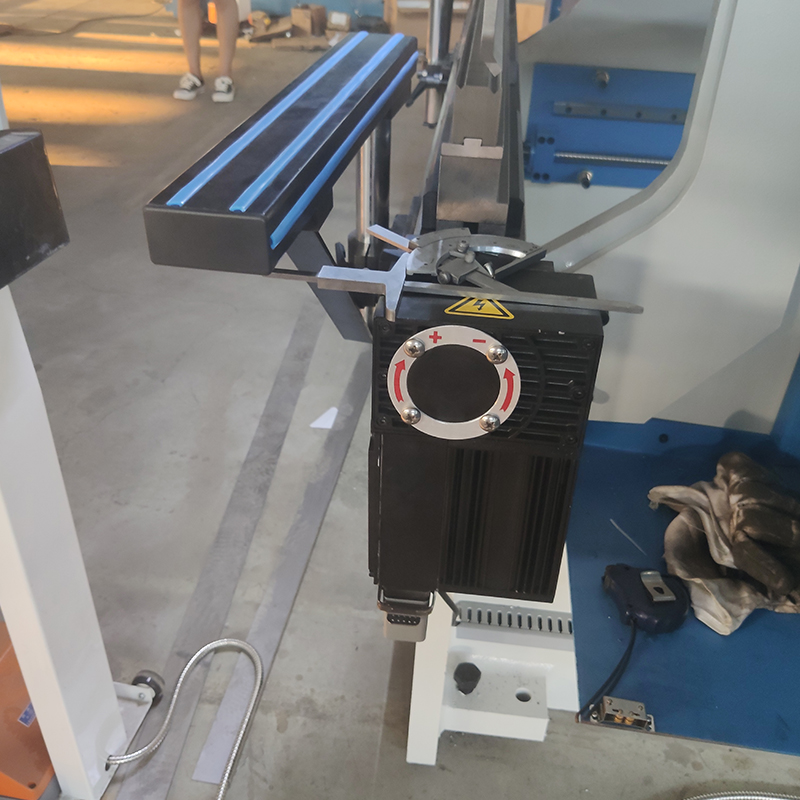

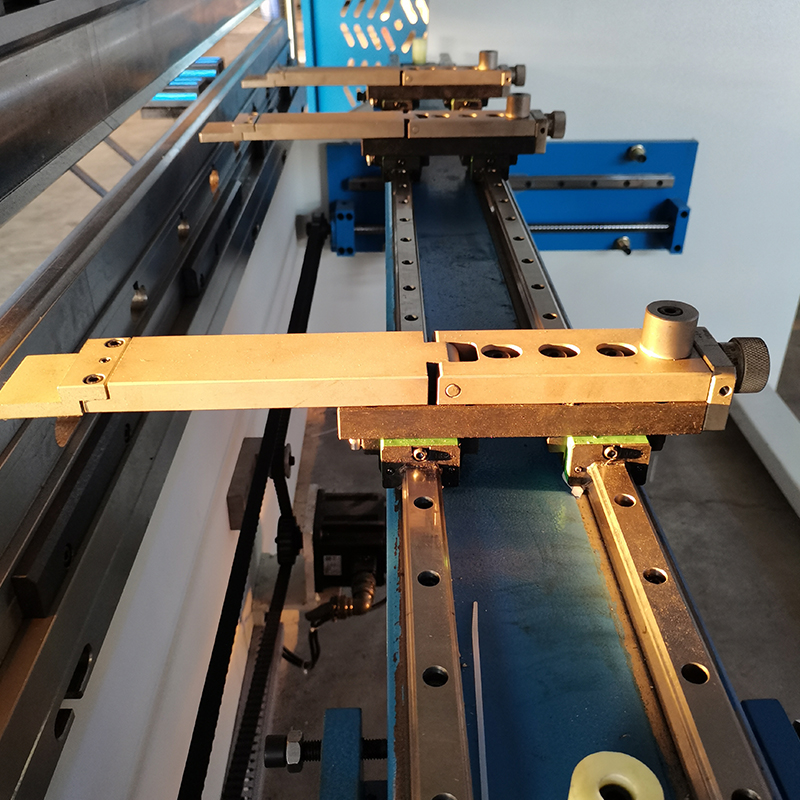

fingers and linear guide

electric crowning

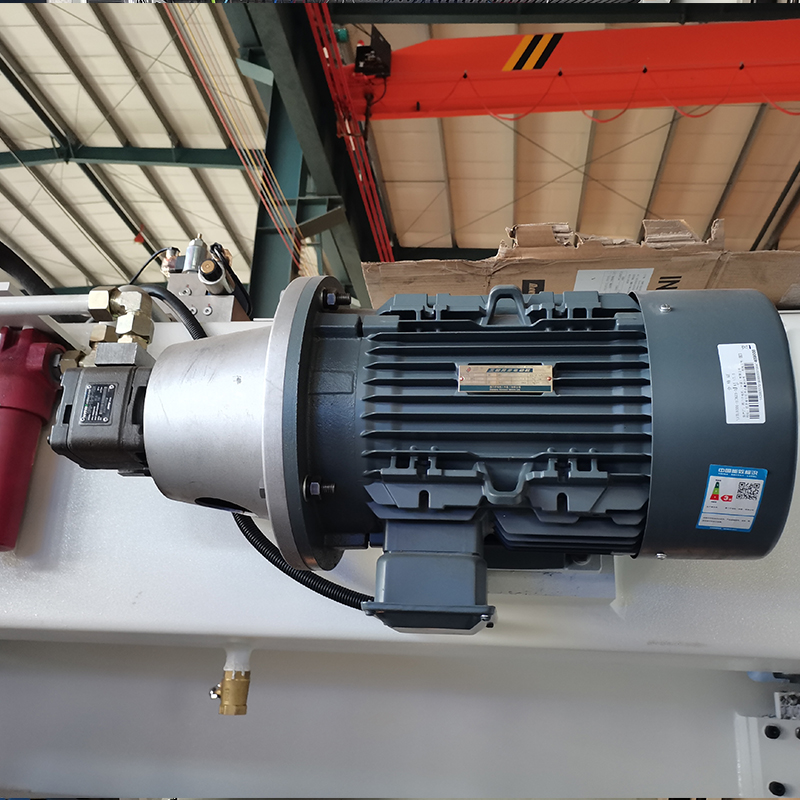

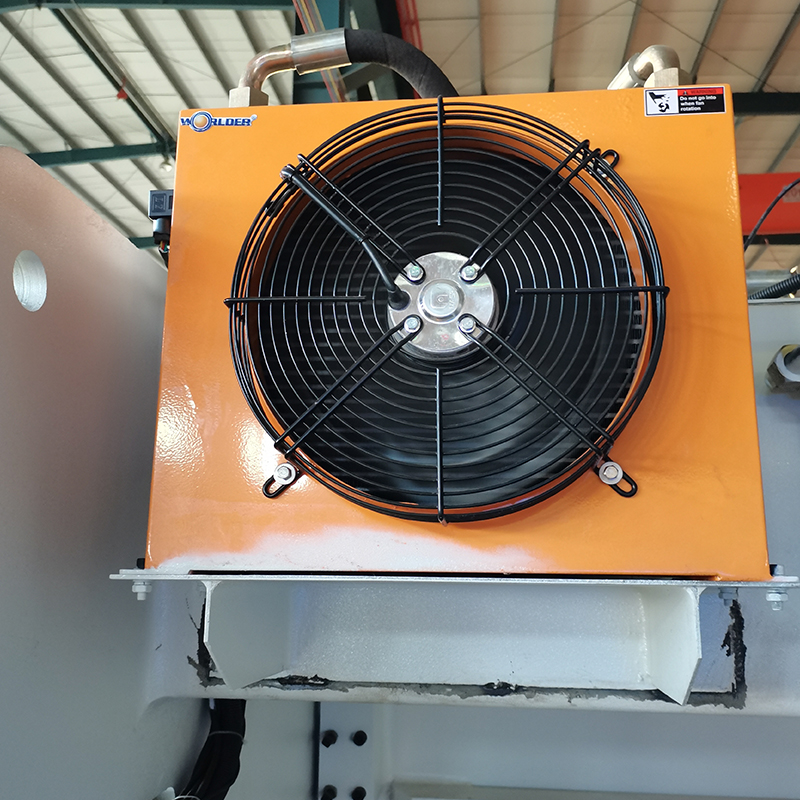

Cooling Fan Main motor

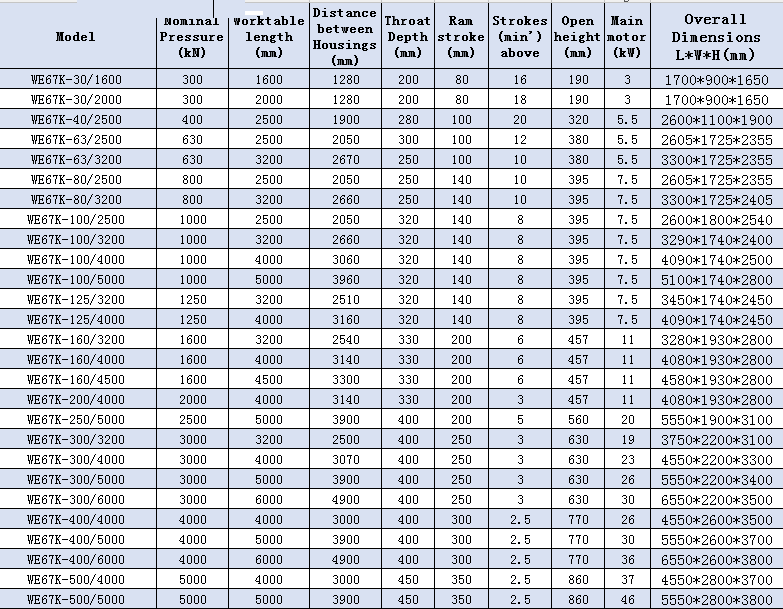

Product Paramenters

Optional Device

Torsion Bar Synchro NC Hydraulic Press Brake

1. Integrated steel plate welding structure;
2. double hydraulic cylinder transmission;
3. torsion bar synchro;
4. back gauge position X axis and ram stroke Y axis NC control; DA41 E300 CYBTOUCH8 bending angle control
5. multi-step programming memory
6. real-time bending amount display ;
7. power off memory of program technical data.

Electro-hydro Servo Synchro CNC Press Brake

1. integrated welding and vibratory stress relief;
2. electro-hydro servo valve and grating ruler for closed loop control;
2. high precision of backgauge position and re-positioning;
3. maximum 6 backgauge axis;
4. auto hydraulic crowning controlled by controller;
5. CNC system including DELEM (Netherlands), ESA (Italy), CYBELEC (Switzerland) etc.

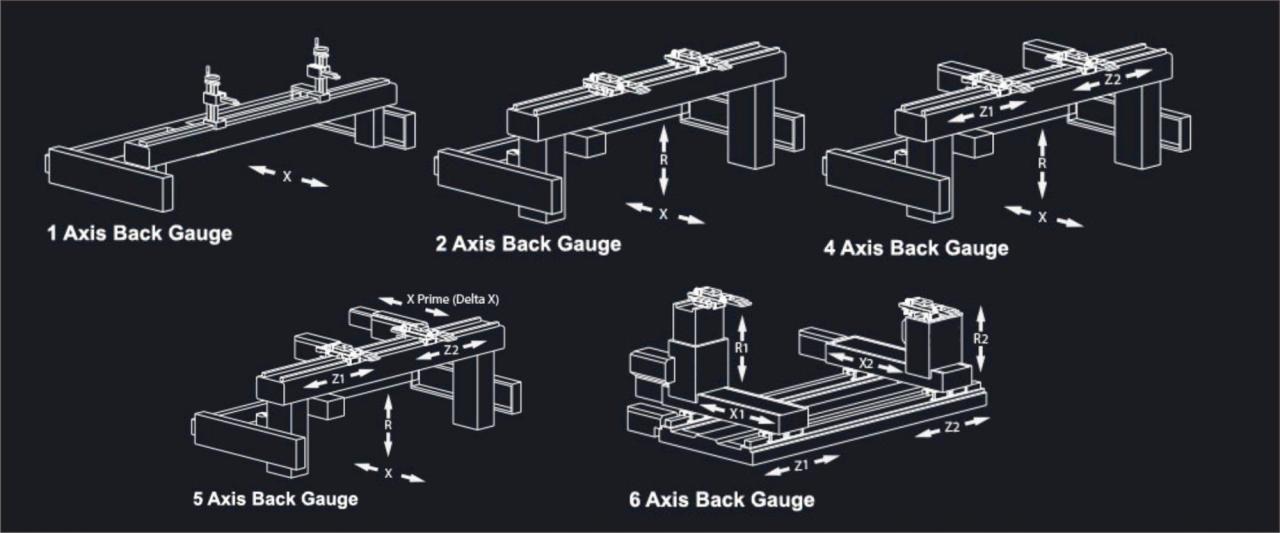

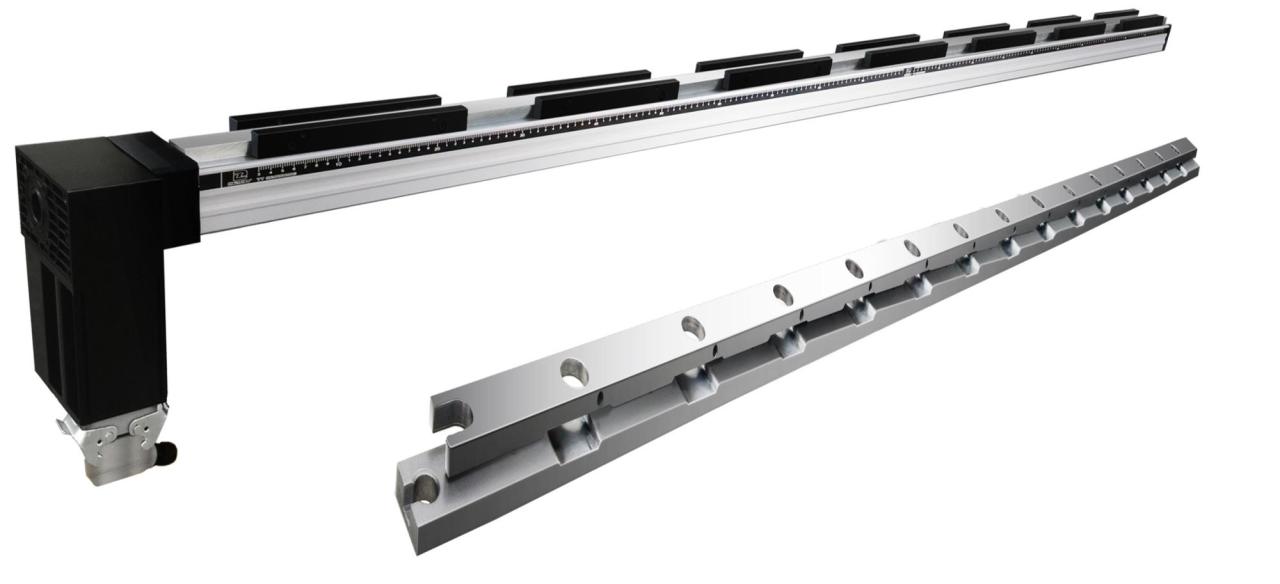

High Precision Backgauge Device

Multi-Axes Solutions

Ram stroke: Y1, Y2 Backgauge: X, R, Z1, Z2 Compensation axis: V

China CNC systems:E21, E200, E300, MD11, MD320, MD330
Holland CNC systems: DA-52S, DA-56S, DA-66T, DA-69T

Option: 1 axis to 6 axis back gauge according to your need

X / X R / X R Z1 Z2 / X R Z1 Z2 / X R Z1 Z2 X Prime / X1 X2 R1 R2 Z1 Z2

Press Brake Controller

For torsion bar synchro NC hydraulic press brake, we provide the E21 with steppor motor or E200, E300, DA41 and DA41s controller with servo system.

For electro-hydro servo synchro CNC press brake, we provide DA52s, DA58T, DA66T and CybTouch 8, CybTouch 12 controller.

Crowning Device

3 types: manual crowning, electric mechanical crowning and hydraulic crowning

Working principle:

The weight of long and heavy workpiece can cause the ram and worktable some deformation during the process of bending: the crowing device can improve the precision of press brake by making relevant different mechanism compensation to the ram deformation. it is especially applied to make some high precision products such as stainless steel.

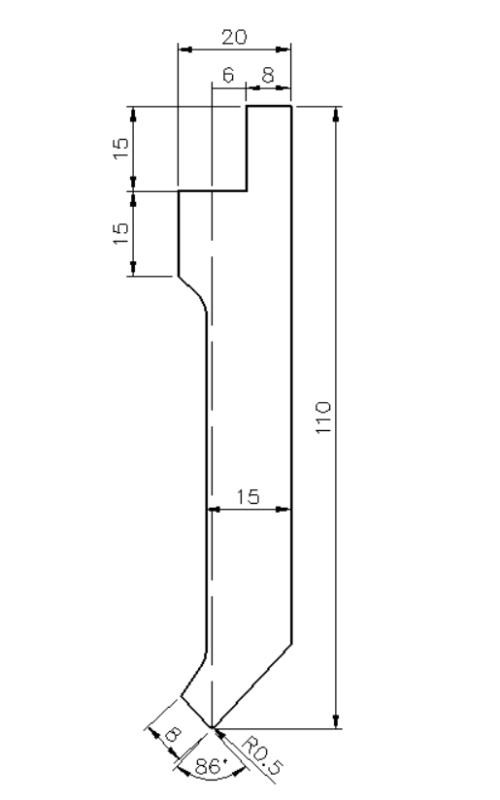

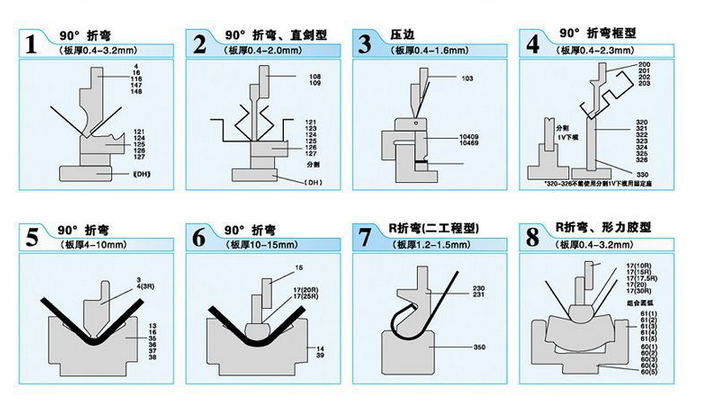

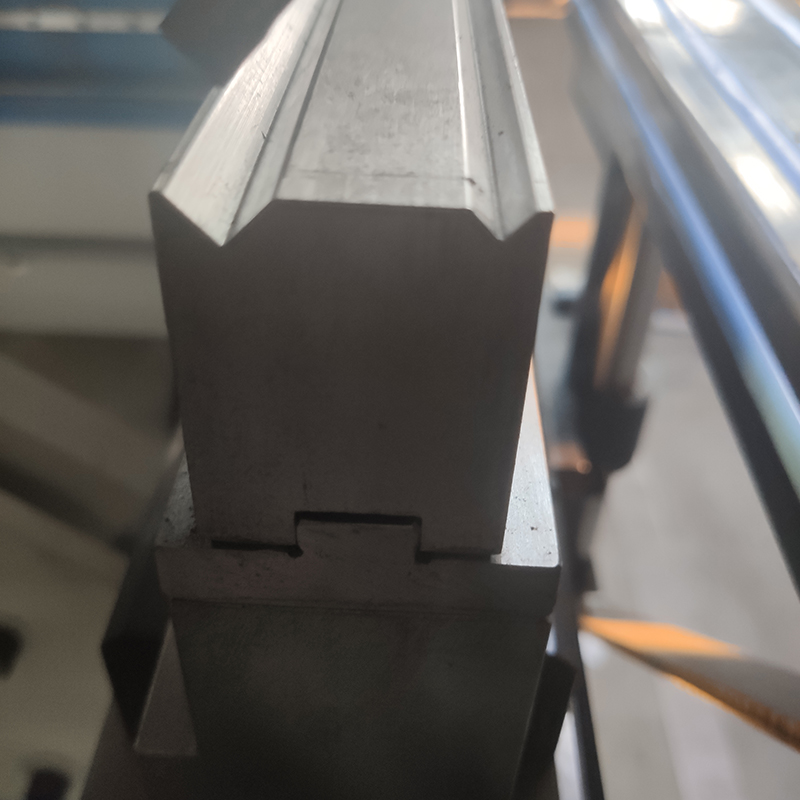

Standard Press Brake Toolings

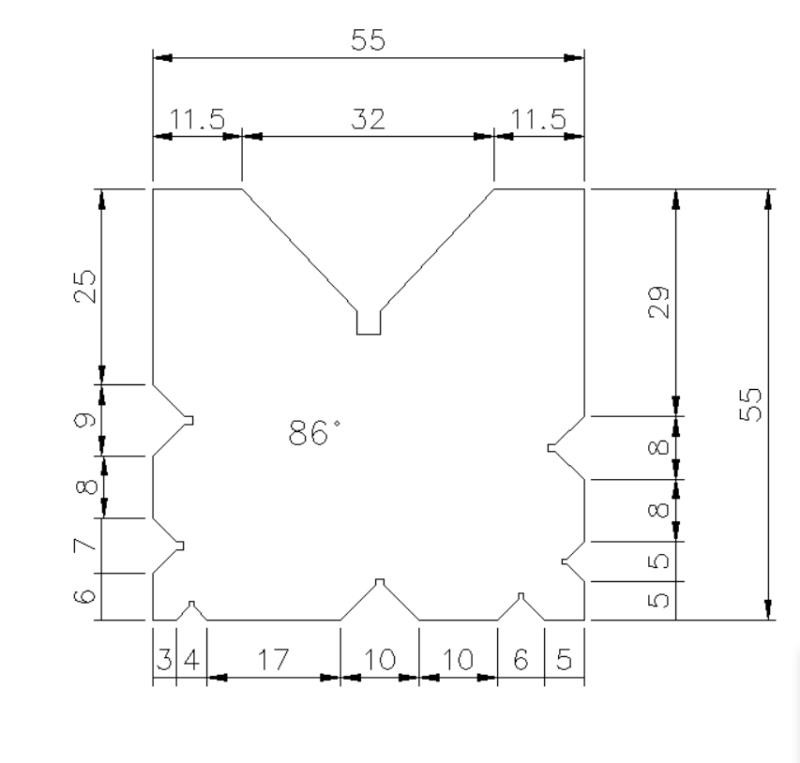

Free Standard lower 4 way die block, and segment upper punch

Generally, the press brake toolings are customized based on final products or workpieces.

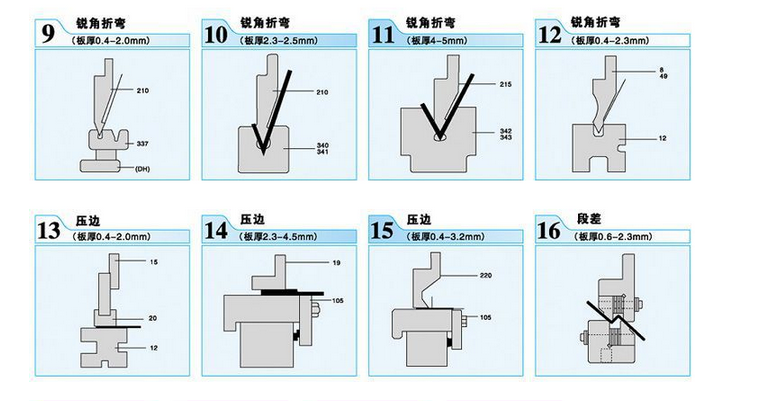

Additional press brake toolings

By your tool design or your workpiece drawings, We provide you various press brake upper punch, lower die, hemming tools, offset tools, tool clampings etc.
