Electric Cnc Servo Panel Bending Machine Bend Box And Shelf

Quick Description

• Slider Stroke (mm): 1800 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 175 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 2500
• Width of Working Table (mm): 1250 mm
• Condition: New
• Place of Origin: Anhui, China
• Material / Metal Processed: Brass / Copper, Stainless steel, ALLOY, Carbon steel, Aluminum, Plastic, PVC
• Automation: Automatic
• Weight (KG): 8000
• Motor Power (kw): 45 kw
• Key Selling Points: High-accuracy
• Warranty: 1 Year
• Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Advertising Company
• Showroom Location: Egypt, United Kingdom, Viet Nam, India, Mexico, Thailand, Sri Lanka, Malaysia
• Marketing Type: New Product 2020
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 24 months
• Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox
• Power: CNC
• Name: Panel Bending Machine
• Number of axes: 11/12 optional
• Model: DA52S
• Application: for press brake
• Bending angle: 0-180°
• Dimension: 3370*1890*2650
• Minimum arc radius: 1.2mm
• The fastest continuoue bending speed: 0.5s
• Type: CNC Hydraulic

More Details

Product Description

The intelligent flexible bending center focuses on solving various complex sheet metal bending problems in metal forming. Mainly engaged in the research and development, production and sales of intelligent flexible bending centers, self-propelled robotic arms, multi-axis concurrent linkage control systems, and cloud operation and maintenance management platforms.

RAYMAX have independent intellectual property rights, and realize the real 9-axis concurrent linkage. Each single control board supports 32-axis concurrent linkage, which can realize infinite cascade. Products have been widely used in file cabinets, electrical cabinets, kitchen utensils, fixtures, decoration, ventilation, refrigeration, elevators, car industry, door industry and other metal forming fields.

Compared with traditional hydraulic bending advantages:

1. The processing speed is fast, up to 0.2 seconds/knife;
2. High precision, can reach 0.1mm-0.2mm, the machine is equipped with 15 axes as standard, realizing full automation of complex workpieces.
3. The machine is easy to operate, and one worker can operate multiple devices.
4. The bed is made of castings, with good stability and mature technology, and the machine can be used for a long time to ensure high precision.

Casting!

Casting machine structure and machine body, which ensures machine stable and no shape change for long years use. machine with heat treatment!

Main function configuration:

High-grade casting
9-axis concurrent linkage control system
C axis lift (sucker type)
Double C-axis automatic following system (press arm type)
Graphic visualization error detection programming
Oil supply self-lubricating system
Double Y-U automatic positioning ruler (press arm type)
Workpiece anti-misplacement detection function (press arm type)
Custom function of workpiece precision surface
0.001mm system accuracy
Eccentric load detection system
Plate thickness detection system
Eccentric load bending follow system
Interchangeable and customized narrow module (sucker type)
Cloud operation and maintenance management interface
Y-axis double leaning ruler (sucker type)
Offline editing function
Big data self-learning function
Advanced programming functions
High-speed control module
Up and down pressing dead edge function
Flattening function
Self-driven loading and unloading integrated automation components
Handwheel function

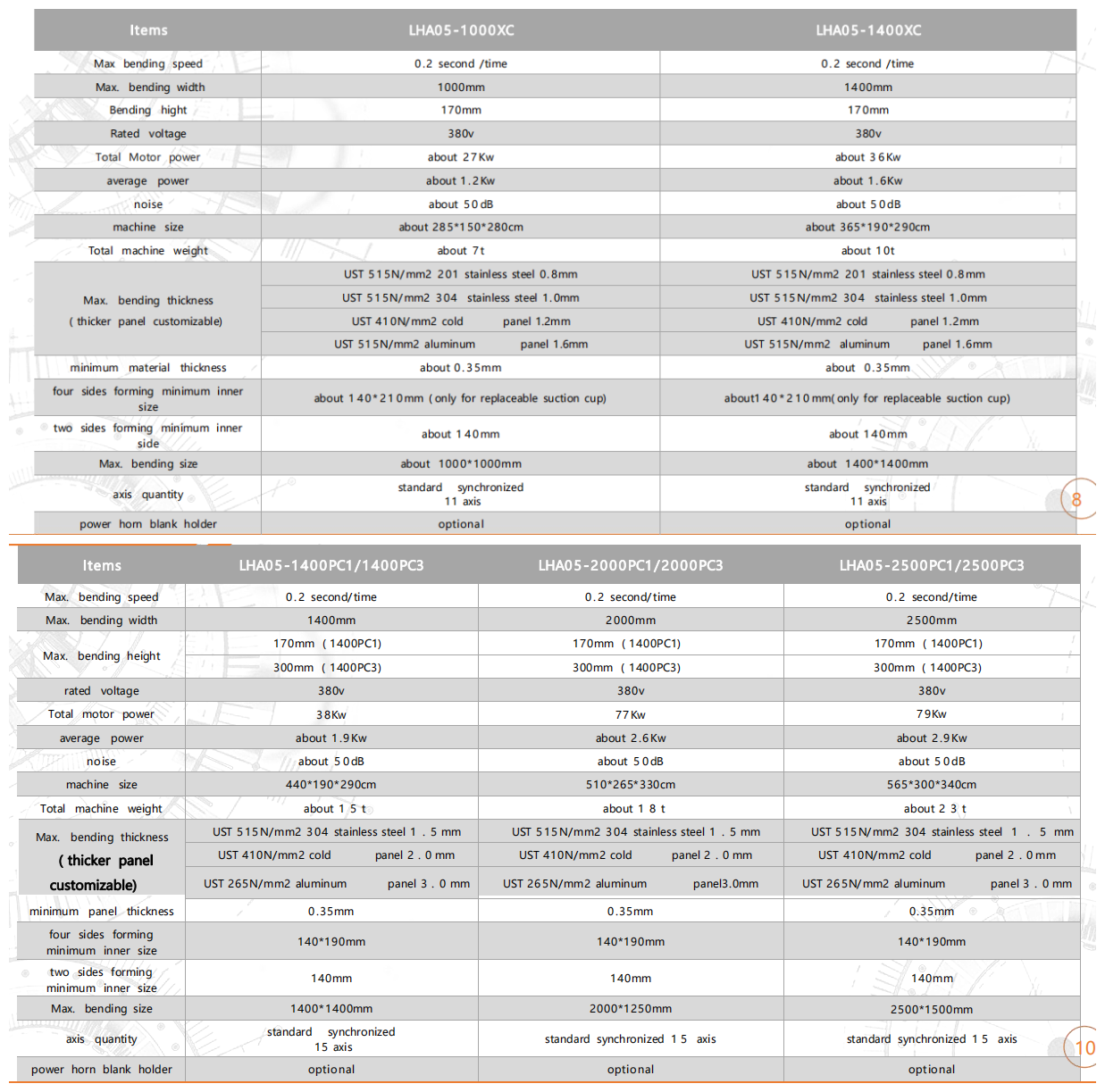

Panel bending machine parameters

Standard model for ref. Welcome to share with RAYMAX team your work piece drawing, we will send you matched model and test bending video to show directly the ending products!

Detailed Images

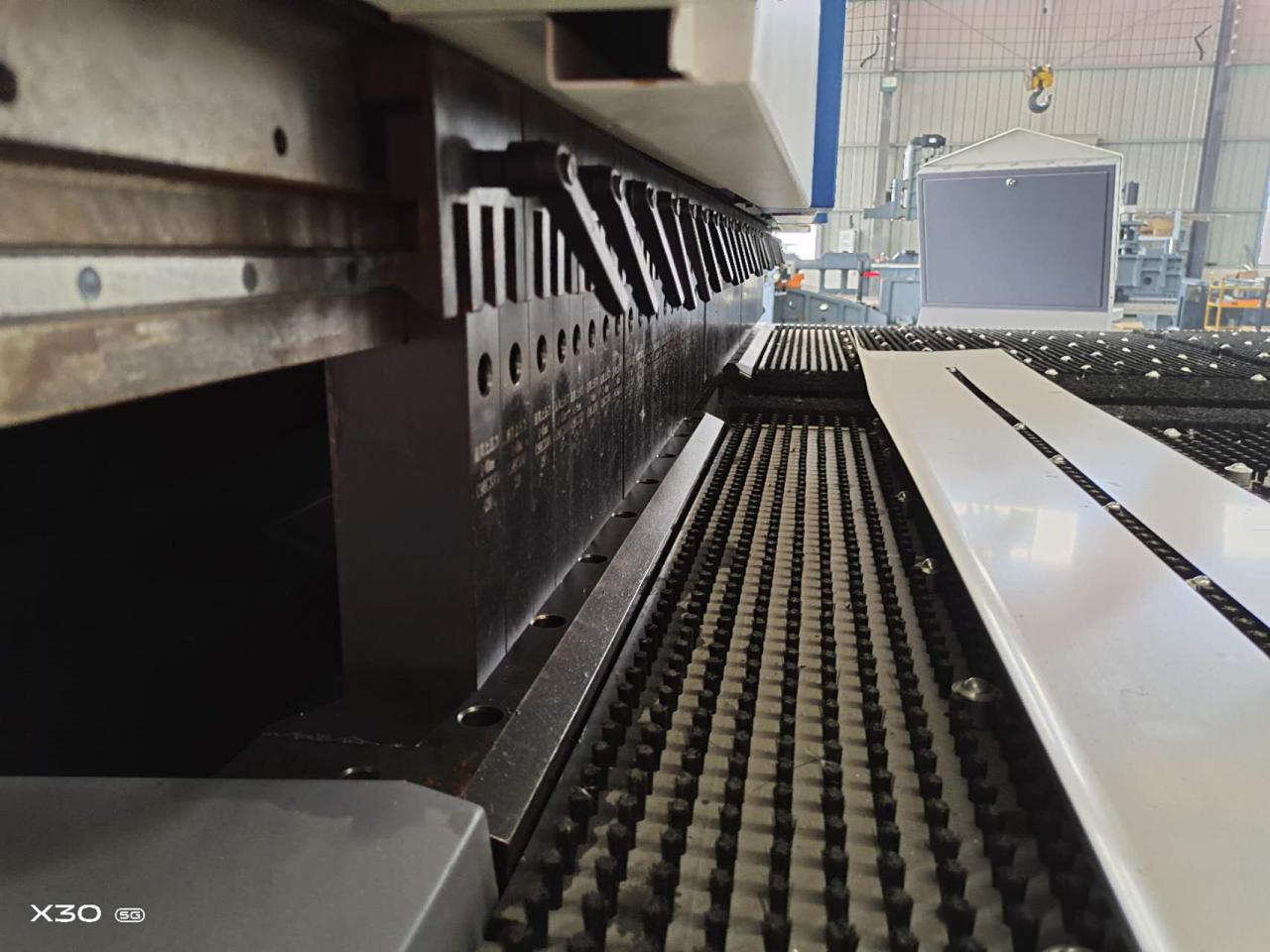

RAYMAX patented tooling die

RAYMAX patented design of the tooling die, which is friendly to stainless steel. there will be no trace left on the plate surface, to ensure the perfect bending effect.

The upper and lower bending Tool (A, D) perform upward or downward bending during work.
The upper pressing tool (B) works simultaneously with the bending tool and the lower pressing tool
Precise and efficient fixing and bending of sheets.
The lower pressing tool (C) clamps the sheet during bending.
Imported slow wire technology, higher consistency, the precision of the general segment upper pressing tool can reach 0.006mm, to achieve real bending without indentation, the overall heat treatment and ultra-cryogenic process have higher hardness and wear resistance.

Using cr12mov or 42crmo material, different materials can be selected according to customer process.
Self-built tool factory, each tool can be traced back to the source, and passed strict quality inspection, the quality is more guaranteed.

Full automatic type CNC robot

To match with CNC robot arm, realize the full automatic plate loading and work piece unloading. The ensure the most effective and save labor cost !

Automatic loading and unloading technology solution:

The system reserves abundant industry 4.0 .

The interface can be connected to the robot arm to realize automatic loading and unloading.
Equipped with RAYMAX self-propelled robotic arm, it has the same control system as the bending center. There is no need for secondary programming to replace workpieces. The system automatically generates robotic arm movements according to the bending instructions, with higher efficiency and better coordination.
