High Productivity 100t 4000 Cnc Hydraulic Press Brake Bending Machine

Quick Description

• Slider Stroke (mm): 220 mm
• Automatic Level: Fully Automatic
• Throat Depth (mm): 320 mm
• Machine Type: Synchronized
• Length of Working Table (mm): 3200 mm
• Width of Working Table (mm): 120 mm
• Condition: New
• Place of Origin: Anhui, China
• Brand Name: RAYMAX
• Material / Metal Processed: Brass / Copper, Stainless steel, ALLOY, Carbon steel, Aluminum
• Automation: Automatic
• Extra Services: End Forming
• Weight (KG): 6800
• Motor Power (kw): 7.5 kw
• Key Selling Points: High Productivity
• Warranty: 1 Year
• Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Printing Shops, Construction works , Advertising Company
• Showroom Location: Canada, United States, Italy, Spain, Thailand, Australia
• Marketing Type: Other
• Machinery Test Report: Provided
• Video outgoing-inspection: Provided
• Warranty of core components: 1 Year
• Core Components: Motor
• Product name: automatic metal press brake
• Raw Material: steel
• Usage: Metal Sheet Bending
• poles distance: 2600mm
• Control system: DA53T DA58t DA66 DA69T
• slider travel: 120
• max open: 380mm
• Voltage: 220V/380V/415V/440V/customized
• Nominal Pressure (kN): 1600 kN
• Certification: ce

More Details

Products Description

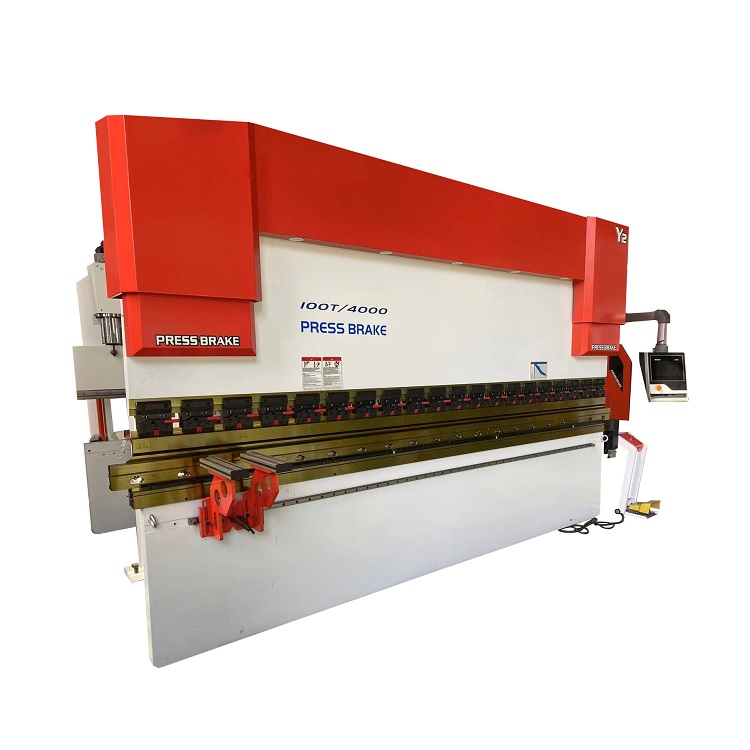

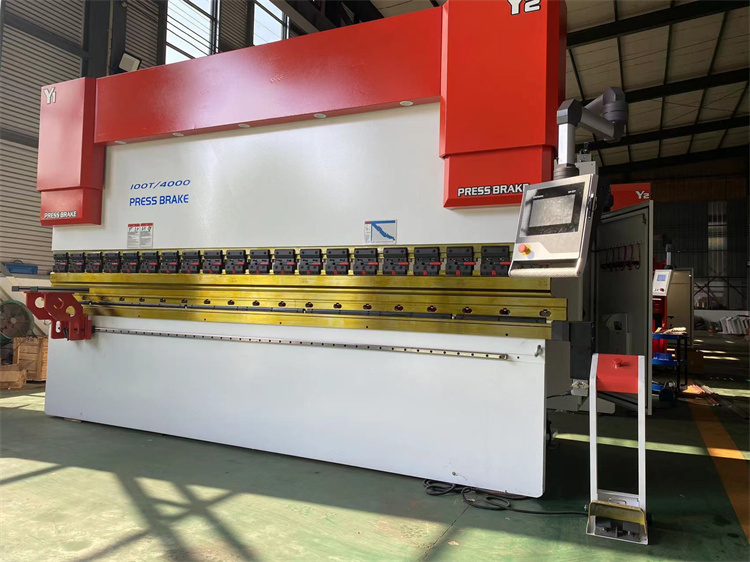

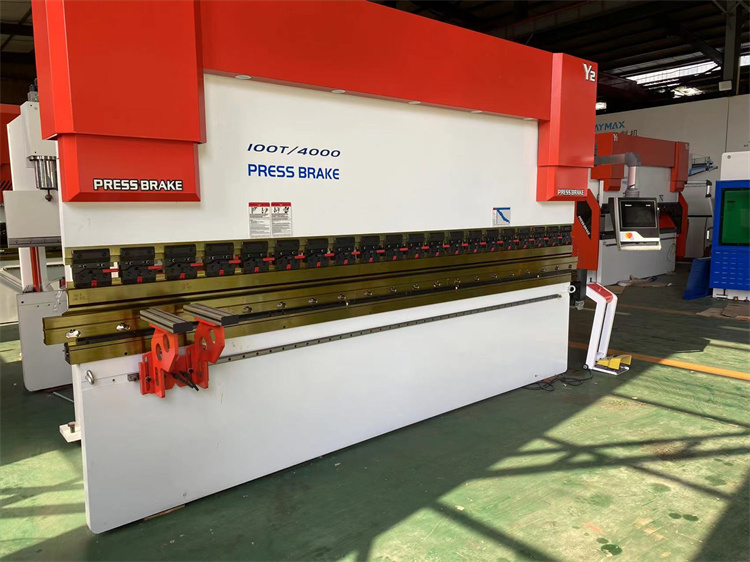

Hydraulic press brake

* Overall welded and processed structure

* Dual cylinders synchronous controlled by electro-hydraulic servo vale, ensure the highest controlling precision, bending accuracy and repositioning accuracy are also reach the highest level

* Backgauge mechanism can control several backgauge axes

* Hydraulic compensation mechanism helps to prevent the deformed slider from affecting the quality of the workpiece, and the compensation mechanism is adjusted automatically by the CNC controller which is convenient and accuracy

* WF67K Series machines redesigned based on users preferences to become a unique machine with its individual electronic and mechanical features.

* WF67K Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level with its user friendly CNC controller and low cost hydraulic maintenance.

* New WF67K is exactly what you need for your production where complicated, sensitive, single or multiple bends on high speed are paramount.

* High quality and repetitive bending is obtained by using synchronized cylinders and valves.

* Automatic utilization of all axes on startup.

* Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm.

* Well-known top and bottom tool brands are long lasting hardened and provide precise bending.

* The machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest Technology.

Feature

1. The frame is steel structure, left and right vertical plate, table and pressure plate welded into a unitary structure, after welding to eliminate internal stress by tempering, exceptional rigidity, high stability.
2. Important parts of the frame, sliders, etc. are used ANSYS finite element analysis software to ensure machine reliability.
3. Hydraulic drive, cylinder on both end of machine, disposed on the slider to drive it work directly.
4. Torsion axis synchronization for slide synchronous mechanism.
5. The stroke of cylinder ( Y1,Y2) and back gauge (X,Y,Z )are computer controlled .The back gauge adopt ball screw and rolling guideway ,ensuring a high accuracy of repetition
6. Back Gauge size and slide stroke controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
7. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
8. Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe
working.
10. Electronic- hydraulic proportional servos are synchronized and capable of the control of random point within the stroke ,with an accuracy of reception of ±0.01 mm and parallelism of 0.02mm .

Standard equipment

Safety Standards(2006/42/EC):
1.EN 12622:2009 A1:2013
2.EN ISO 12100:2010
3.EN 60204-1:2006 A1:2009
4.Front finger Protection(Safety light curtain)
5.South Korea Kacon Foot Switch(Level 4 of safety)
6.Back metal safe fence with CE standard

Details Images

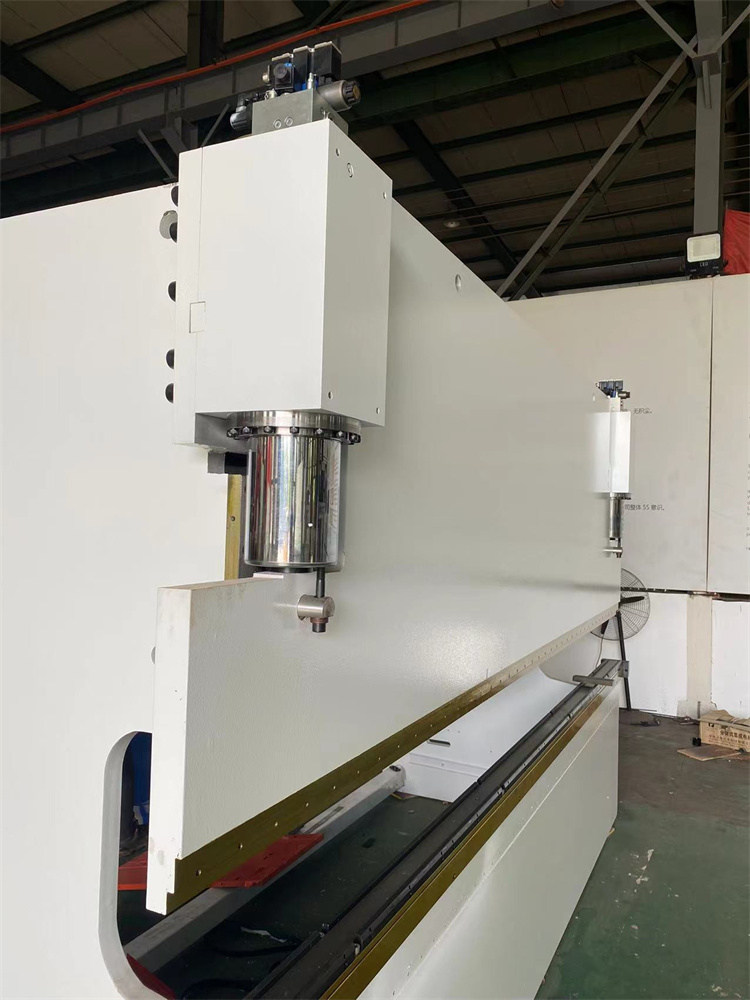

A large floor milling and boring machine is used to process the frame of the bending machine

The whole machine is in a welded sheet structure, with internal tension eliminated by vibration aging technology, high strength and good rigidity of the machine. The long service life of the machine is ensured.

LED light

LED light, it is easier and safer when the environment is dark for the operator

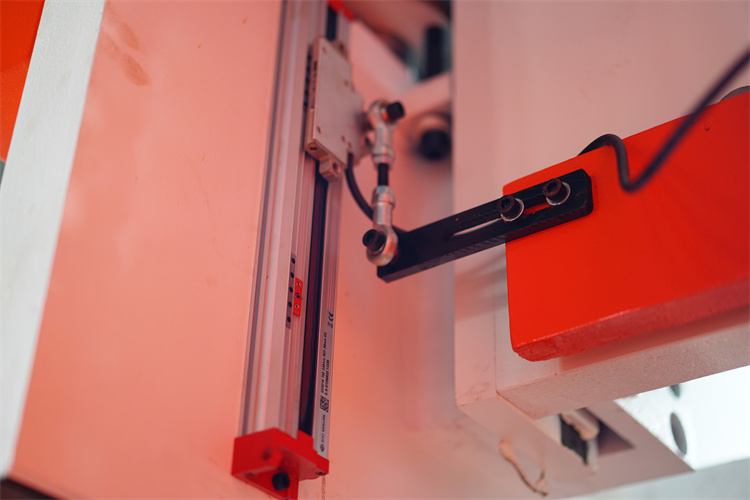

Grating Ruler

Measuring step 5 um connection rod connection large mounting tolerances

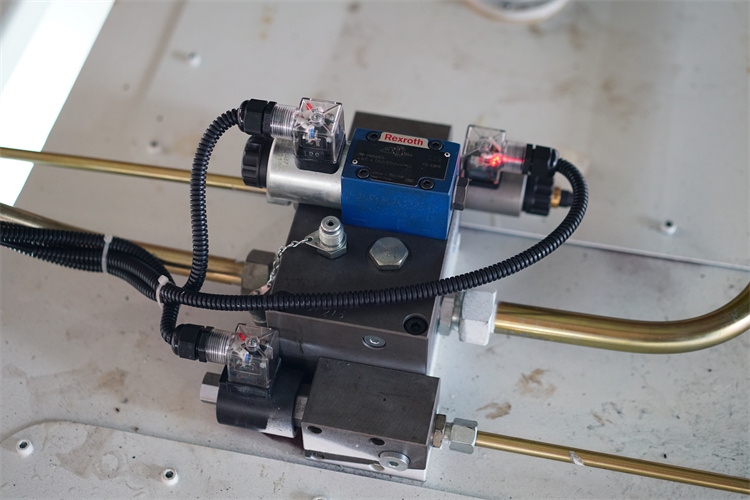

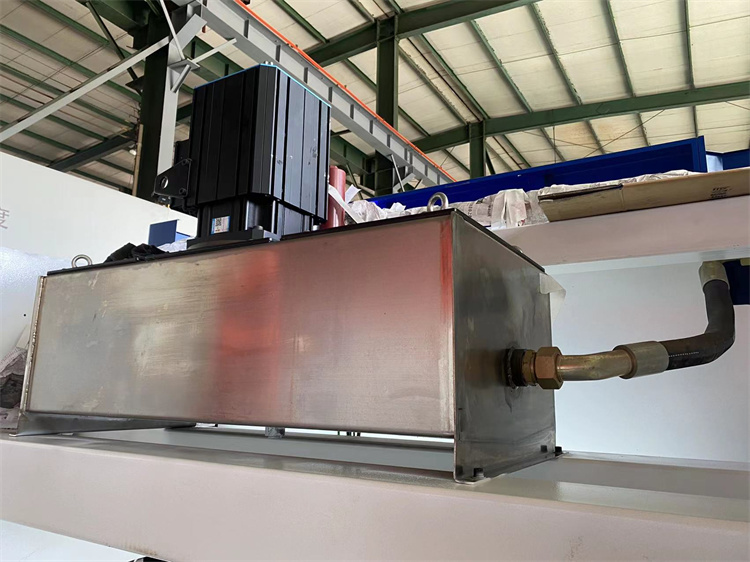

BOSCH-REXROTH Hydraulic system

BOSCH-REXROTH Hydraulic system with overload overflow safety protection
The machine can work continuously under rated load
Hydraulic system decreased the pipe connections, oil leakage, and increased the stability and overall beautifies
High-pressure clamp tubing connection, high-pressure non-oil, easy to maintain

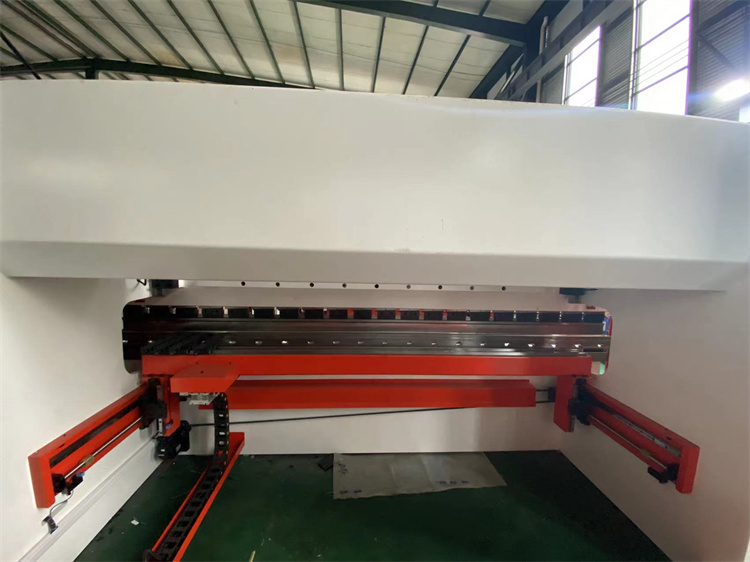

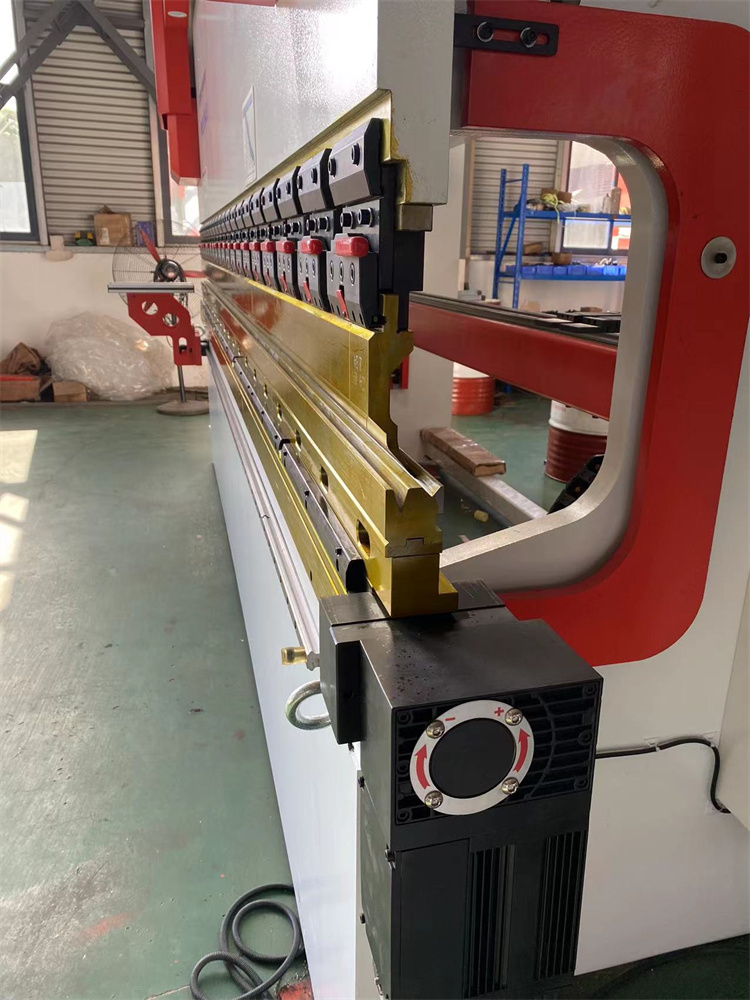

Backgauge

The backgauge, it is made of high-strength aluminum alloy material, driven by servo motors,and uses ball rods and linear guide rails, with good positioning accuracy

Full envelope design free of maintenance

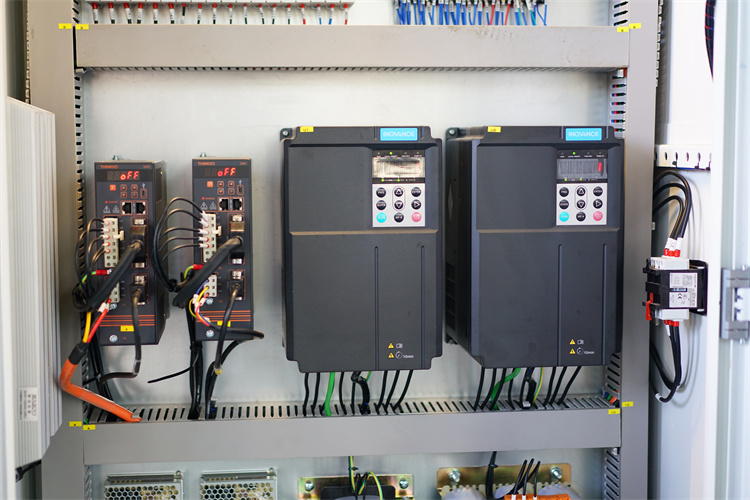

France Schneider Electrics

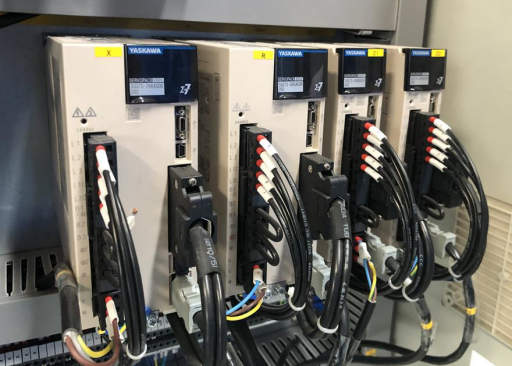

Adopting France Schneider electric to ensures the machine stability, using Estun servo drive and control X-axis to ensure the positioning accuracy of X-axis, and the speed of X-axis are adjustable.

Servo drive

Stable performance. It can control the speed and position accuracy very accurately, and can convert the voltage signal into torque and speed to drive the control object

Optional servo drive: YASKAWA,Japan

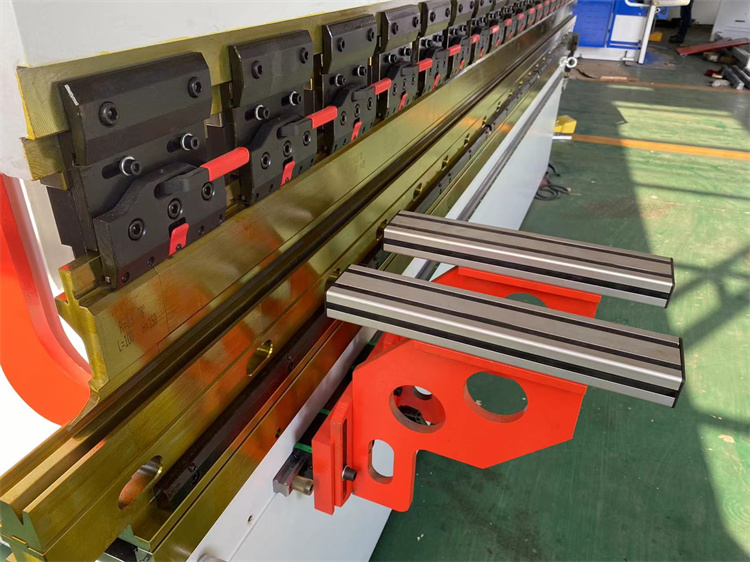

Double structure front arm

Double structure front arm is higher rigidity, superior carrying capacity.
It can be adjusted up and down or move along the work bench from side to side

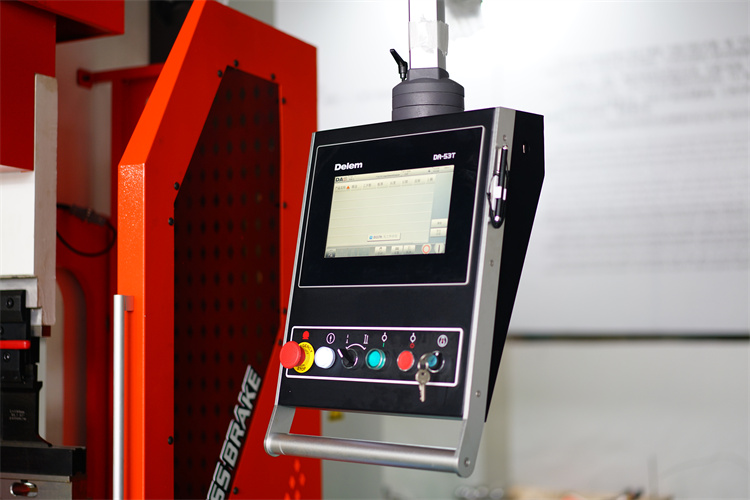

DA53T

"Hot-key" touch navigation
Up to 4 axes (Y1,Y2 2 aux. axes)
Crowning control
Tool/ material/ product library
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
TandemLink (option)
USB memory stick interfacing
Profile-53TL offline software

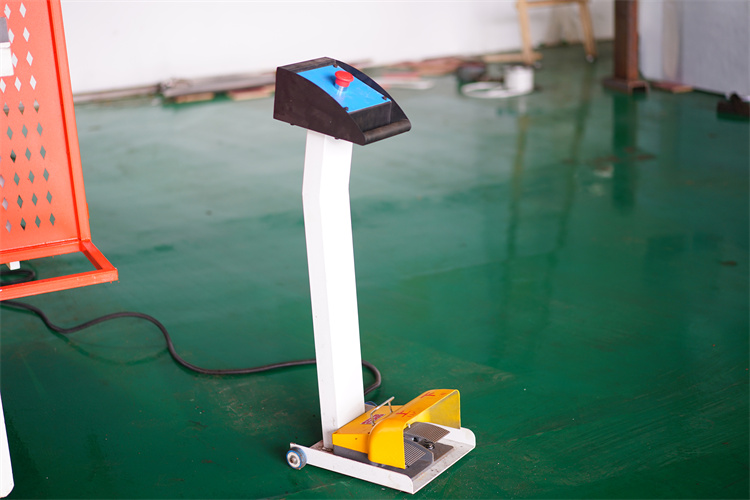

Karcon Pedal switch with emergency button

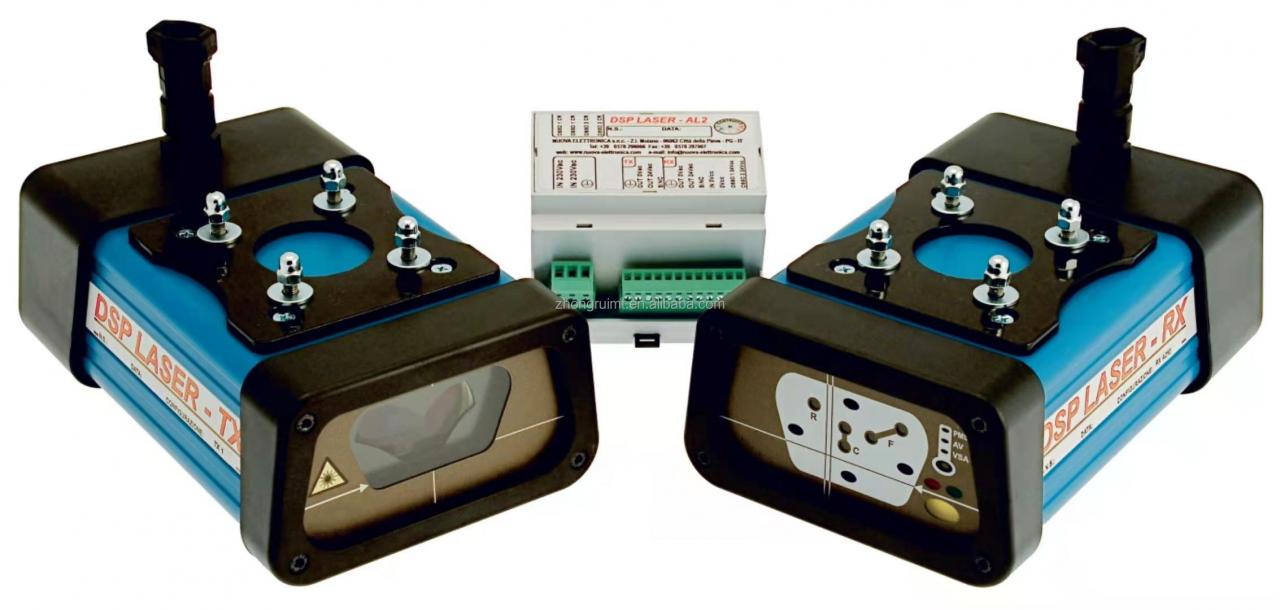

Italy DSP Laser protection
